Metallurgical Microscope

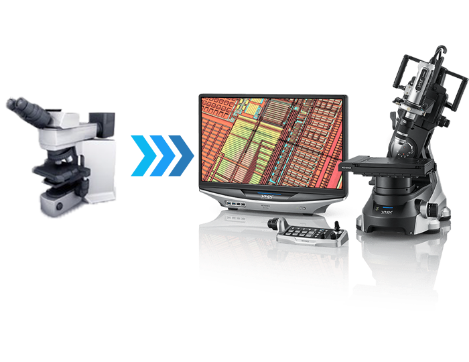

The VHX Digital Microscope was designed with

top-of-the-line technology in the

lenses, camera, graphics engine, and stage.

The VHX 3D display function allows users to generate fully-focused 3D images of a target even at high magnifications. By combining glare removal functions and 3D compilation technologies, it is possible to construct a 3D profile even on targets with extremely reflective surfaces.

The depth from defocus method allows users to always have fully-focused images. By calculating the height position of the lens when each point in the image comes into focus, a 3D image can be created with height data and detailed texture information.

Real-time 2D/3D measurements can be performed with the advanced measurement capabilities of the VHX. Any user can easily perform accurate measurements, regardless of experience. All measurements can be taken directly on screen, saved with the image, and an automatic report can be generated with all the image and measurement data.

Any user, regardless of their experience, can now obtain high-quality, fully-focused images in an instant. Besides ASTM grain sizing, the VHX provides other new inspection and analysis features, like ISO-16232 cleanliness testing, along with a multi-lighting function that allows users to see surface features like never before.
