• General-Purpose Photoelectric Sensor

  • Miniature Sensors

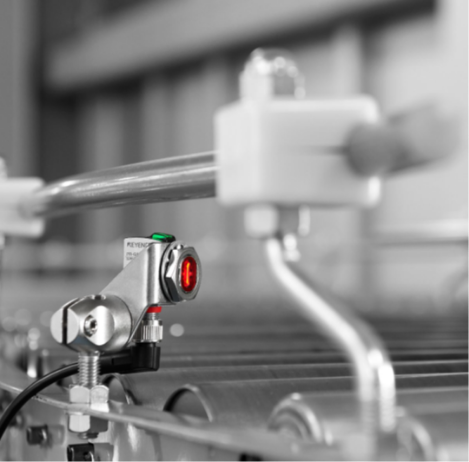

    PR-G Series

    • Durable & Long Life
    • High Power
    • Ease of Use
  • Durable & Long Life

    With a durable stainless steel housing (SUS316L*), the PR-G Series is able to withstand over tightening and impact without the need for additional guarding.
    The PR-G Series maintains IP68 & IP69K enclosure ratings; while also remaining highly resistant to oils, acids, and alkaline detergents.

  • High Power

    The integration of a high luminance 4-element LED with an increase in the gain of the received light intensity, has enabled the PR-G Series thrubeam model to achieve a maximum detecting distance of 30 meters 98.4'. These two factors allow the PR-G Series to reliably detect through oil, dust, and other forms of build-up. This high power ensures the stable operation of the PR-G Series in harsh environments.

  • Ease of Use

    The large output indicator is clearly visible from any position and is approximately six times larger than that of a conventional KEYENCE sensor. The PR-G Series also offers an easy to adjust trimmer for simplistic sensitivity setting (no special tools required).
    Along with this, the reflective and retro-reflective models contain a 7-segment digital display, which enables accurate calibration based on numerical values.

  • Resists damage, even when over-tightened

  • Meets NEMA Type 4X*, 6P*, 13 and IP68/69K requirements

  • Highly visible indicator (Approx. 6 times larger than conventional KEYENCE models)

  • Easily adjust sensitivity while monitoring numeric values
