Optical Measurement System

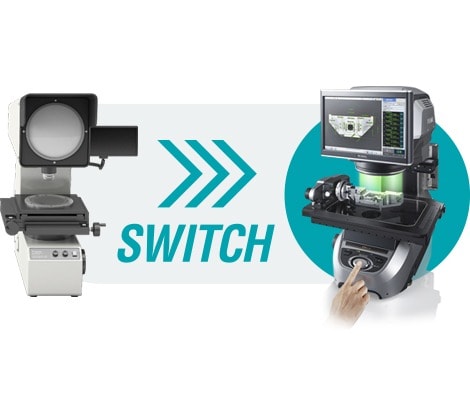

The IM Series is typically referred to as "The Next Generation of Optical Comparator". The system houses 24 fixed position lens, two cameras and collimated lighting in order to dimension 99 critical features within three seconds. All measurement results are backed by automatically generated inspection reports that prove out the accuracy and repeatability of the unit.

The system is easy-to-use, fast and accurate. It can be used by anyone, anywhere in your facility. Imagine, that with the push of just one button, operators are able to measure 99 critical features on a part and have an inspection report automatically created for them.

Complete inspection and analysis reports can be automatically saved on the system without having to manually record the data.

The programmable ring-illumination unit integrates multiple ring illumination functions into a single unit.This allows a wide variety of features to be inspected without the need for lighting changeover to maximize efficiency.
