Warpage Measuring

Non-contact measurement enables parts to be measured without introducing scratches to the surface of the sample with a probe tip. Rubber and soft plastic samples that cannot be measured with a contracer can be easily measured.

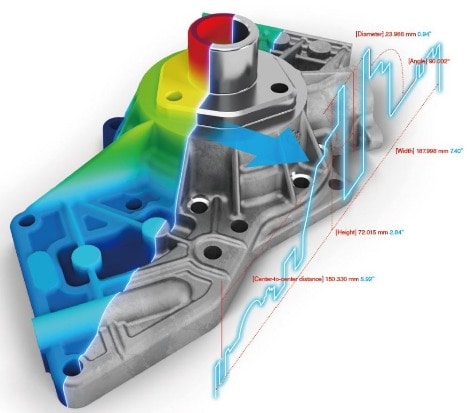

Typical contact measurement tools only capture a limited data set. Capturing the full surface enables the part to be understood in more detail.

Contact measurement tools typically require fixturing, and measuring a curved surface or complex geometry can be difficult. The VR-5000 requires no fixturing, and measurements can be taken anywhere on the sample.

Built-in assist tools make it possible to create reference points and lines to prevent variations between users. The VR enables all users to measure the same location as intended.
